HP60G01 Turbocharger Bearings

Short Description:

The moving parts of the turbocharger are also the core components – the turbine wheel, compressor impeller and rotor shaft, and the supercharger housing have high-speed relative movement, which is unbearable for ordinary bearings, so the bearing of the supercharger is a special floating bearing. As the key moving part of the turbocharger, the structure of the bearing is related to the reliability and durability of the turbine. There are two main types of turbocharger bearings, one is floating bearings and the other is ball bearings.


Product Detail

Product Tags

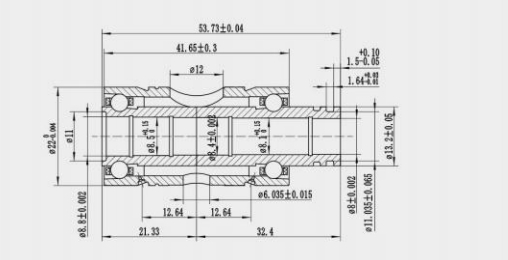

HP60G01 Turbocharger Bearings



Steel Sphere Material Silicon nitride (Si3N4)

Retainer Material PEEK / Brass / Metel

Inner Diameter (d) : 8 mm

Outer Diameter (D) : 22 mm

Height : 53.73 mm

limited speed(r/m) : 150000

Limited temperature : 600℃

Application : GT25R/GT28R/GT30R/GT35R

HP60G01
