Linear bearing: LME
LME type

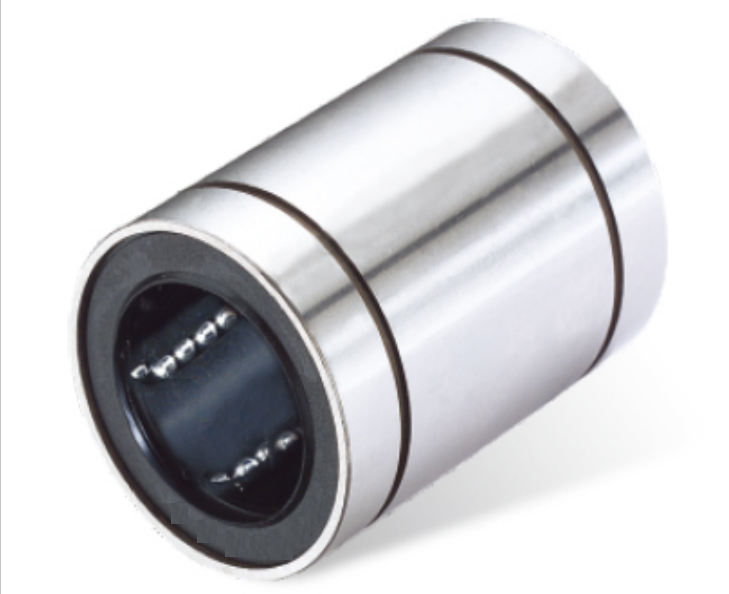

standard type

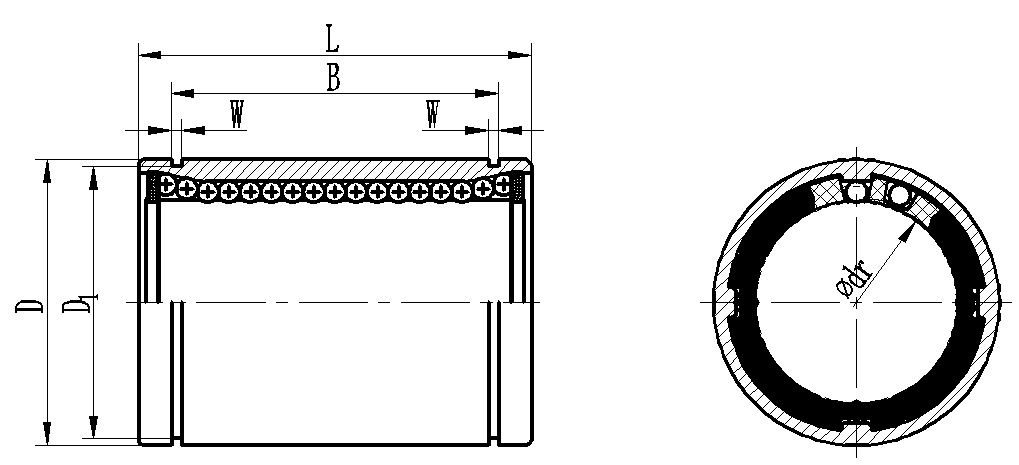

| part number | Number of ball rows | Weight(g) | Main dimensions (mm) | Basic load rating | ||||||||||
| Inner Dia | Outer Dia | Length | Outer ring groove | W | Dynamic | Static | ||||||||
| dr | Tolerance | D | Tolerance | L | Tolerance | B | Tolerane | D1 | C(N) | Co(N) | ||||
| LME 3 | 4 | 1.4 | 3 | +0.008 0 | 7 | 0 -0.008 | 10 | 0 -0.12 | 66 | 100 | ||||
| LME 4 | 4 | 2 | 4 | 8 | 12 | 84 | 121 | |||||||
| LME 5 | 4 | 11 | 5 | 12 | 22 | 0 -0.20 | 14.5 | 0 -0.20 | 11.5 | 1.1 | 196 | 252 | ||
| LME 8 | 4 | 22 | 8 | 16 | 25 | 16.5 | 15.2 | 1.1 | 252 | 382 | ||||
| LME 10 | 4 | 36 | 10 | 19 | 0 -0.009 | 29 | 22 | 18 | 1.3 | 353 | 522 | |||
| LME 12 | 4 | 45 | 12 | 22 | 32 | 22.9 | 21 | 1.3 | 485 | 745 | ||||
| LME 16 | 4 | 60 | 16 | +0.009 -0.001 | 26 | 36 | 24.9 | 24.9 | 1.3 | 549 | 847 | |||
| LME 20 | 5 | 102 | 20 | 32 | 0 -0.011 | 45 | 31.5 | 30.3 | 1.6 | 819 | 1302 | |||
| LME 25 | 6 | 235 | 25 | +0.011 -0.001 | 40 | 58 | 0 -0.30 | 44.1 | 0 -0.30 | 37.5 | 1.85 | 931 | 1492 | |
| LME 30 | 6 | 360 | 30 | 47 | 68 | 52.1 | 44.5 | 1.85 | 1492 | 2603 | ||||
| LME 40 | 6 | 770 | 40 | +0.013 -0.002 | 62 | 0 -0.013 | 80 | 60.6 | 59 | 2.15 | 2052 | 3820 | ||
| LME 50 | 6 | 1250 | 50 | 75 | 100 | 77.6 | 72 | 2.65 | 3629 | 7543 | ||||
| LME 60 | 6 | 2220 | 60 | 90 | 0 -0.015 | 125 | 0 -0.40 | 101.7 | 0 -0.40 | 86.5 | 3.15 | 4465 | 9310 | |
| LME 80 | 6 | 5140 | 80 | +0.016 -0.004 | 120 | 165 | 133.7 | 116 | 4.15 | 6983 | 15200 | |||
