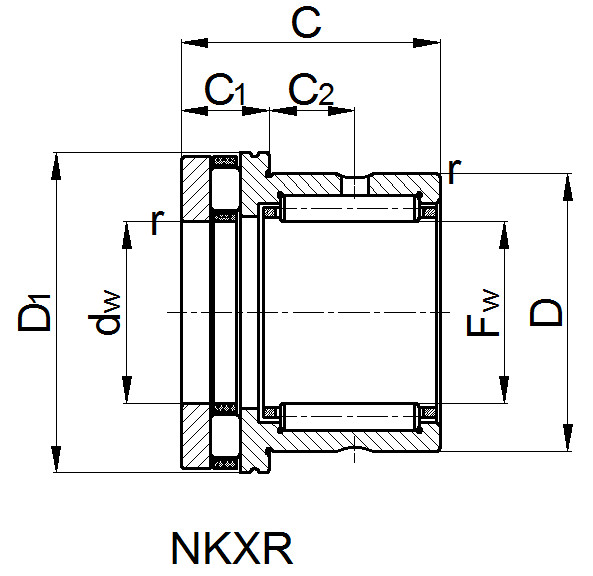

Combined radial/axial bearings: NKXR

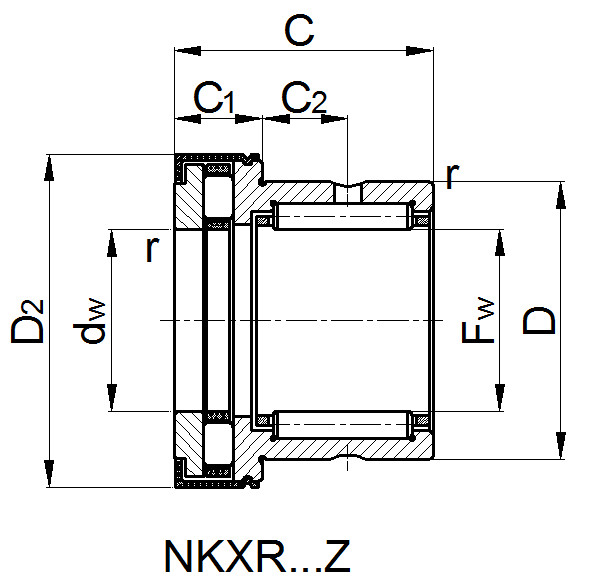

Needle roller/axial cylindrical roller bearings with or without end cap
| Designation | Bearing with retaining cap Designation | Dimensions(mm) | Basic load ratings | |||||||||||
| Fw | D | D1 | D2 | C | C1 | C2 | dw | r | radial | axial | ||||
| max. | max. | min. | dyn. Cr KN | stat. Cor KN | dyn. Cr KN | stat. Cor KN | ||||||||
| NKXR15 | NKXR15-Z | 15 | 24 | 28.1 | 29.2 | 23 | 9 | 6.5 | 15 | 0.3 | 10.7 | 12.7 | 14.4 | 28.5 |
| NKXR17 | NKXR17-Z | 17 | 26 | 30.1 | 31.2 | 25 | 9 | 8.0 | 17 | 0.3 | 11.9 | 15 | 15.9 | 33.5 |
| NKXR20 | NKXR20-Z | 20 | 30 | 35.1 | 36.2 | 30 | 10 | 10.5 | 20 | 0.3 | 16.4 | 23.8 | 24.9 | 53 |
| NKXR25 | NKXR25-Z | 25 | 37 | 42.1 | 43.2 | 30 | 11 | 9.5 | 25 | 0.6 | 18.8 | 30.5 | 33.5 | 76 |
| NKXR30 | NKXR30-Z | 30 | 42 | 47.1 | 48.2 | 30 | 11 | 9.5 | 30 | 0.6 | 22.6 | 36 | 35.5 | 86 |
| NKXR35 | NKXR35-Z | 35 | 47 | 52.1 | 53.2 | 30 | 12 | 9.0 | 35 | 0.6 | 24.3 | 41.5 | 39 | 101 |
| NKXR40 | NKXR40-Z | 40 | 52 | 60.1 | 61.2 | 32 | 13 | 10.0 | 40 | 0.6 | 26 | 47 | 56 | 148 |
| NKXR45 | NKXR45-Z | 45 | 58 | 65.2 | 66.5 | 32 | 14 | 9 | 45 | 0.6 | 27.5 | 53 | 59 | 163 |
| NKXR50 | NKXR50-Z | 50 | 62 | 70.2 | 71.5 | 35 | 14 | 10 | 50 | 0.6 | 38 | 74 | 61 | 177 |
