OEM Factory for Bicycle Front Wheel Bearings - 7312B-2RS Single Row Angular Contact Ball Bearing – CWL

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

"Sincerity, Innovation, Rigorousness, and Efficiency" would be the persistent conception of our enterprise with the long-term to build with each other with consumers for mutual reciprocity and mutual advantage for Agricultural Machinery Bearing, Auto Transmission Bearing, Turbo Floating Bearing, We sincerely welcome clients from both of those at your home and overseas to occur to barter business enterprise with us.
OEM Factory for Bicycle Front Wheel Bearings - 7312B-2RS Single Row Angular Contact Ball Bearing – CWL Detail:

7312B-2RS Single Row Angular Contact Ball Bearing detail Specifications:

Metric series

Material : 52100 Chrome Steel

Construction : Single Row

Seal Type  : 2RS , Sealed on both sides

Seal material : NRB

Lubricant : Great Wall Motor Bearing Grease2#,3#

Temperature Range :  -20°to 120°C

Limiting Speed : 3650 rpm

Cage : Nylon cage or Steel cage

Cage Material : Polyamide (PA66) or Steel

Contact Angle : 40°

Weight : 1.71 kg



微信图片_20220913135531

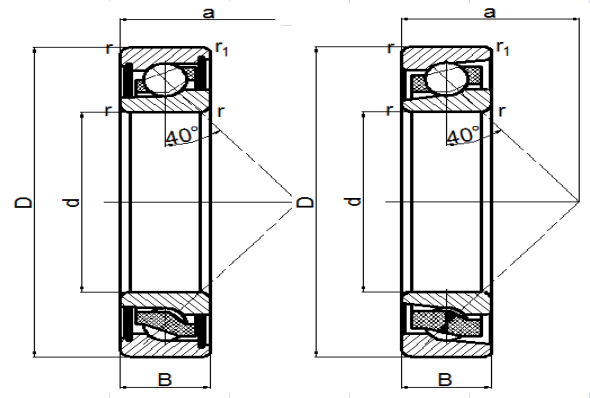

Main Dimensions:

Bore diameter (d) : 60 mm

Outer diameter (D) : 130 mm

Width (B) : 31 mm

Distance side face to pressure point (a) : 55 mm

Chamfer Dimension ( r) min. : 2.1 mm

Chamfer Dimension ( r1) min. : 1.1 mm

Dynamic load ratings (Cr) : 91.20 KN

Static load ratings (Cor) : 65.55 KN



ABUTMENT DIMENSIONS

Minimum diameter shaft shoulder (da) min. : 72 mm

Maximum diameter of housing shoulder (Da) max. : 118 mm

Maximum diameter of housing shoulder (Db) max. : 123 mm

Maximum fillet radius of shaft (ra) max. : 2.1 mm

Maximum fillet radius of housing (ra1) max. : 1.0 mm


Product detail pictures:

OEM Factory for Bicycle Front Wheel Bearings - 7312B-2RS Single Row Angular Contact Ball Bearing  – CWL detail pictures
